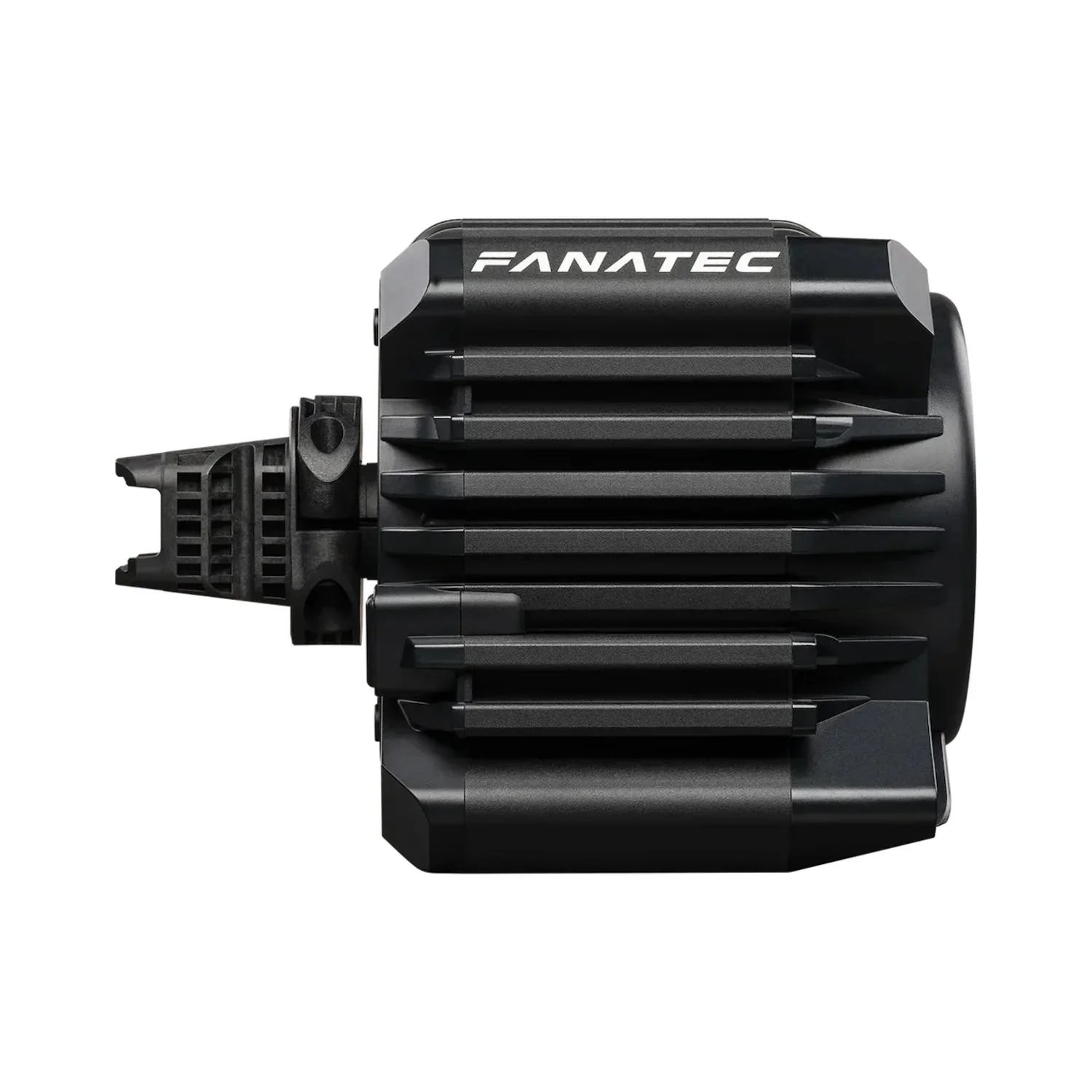

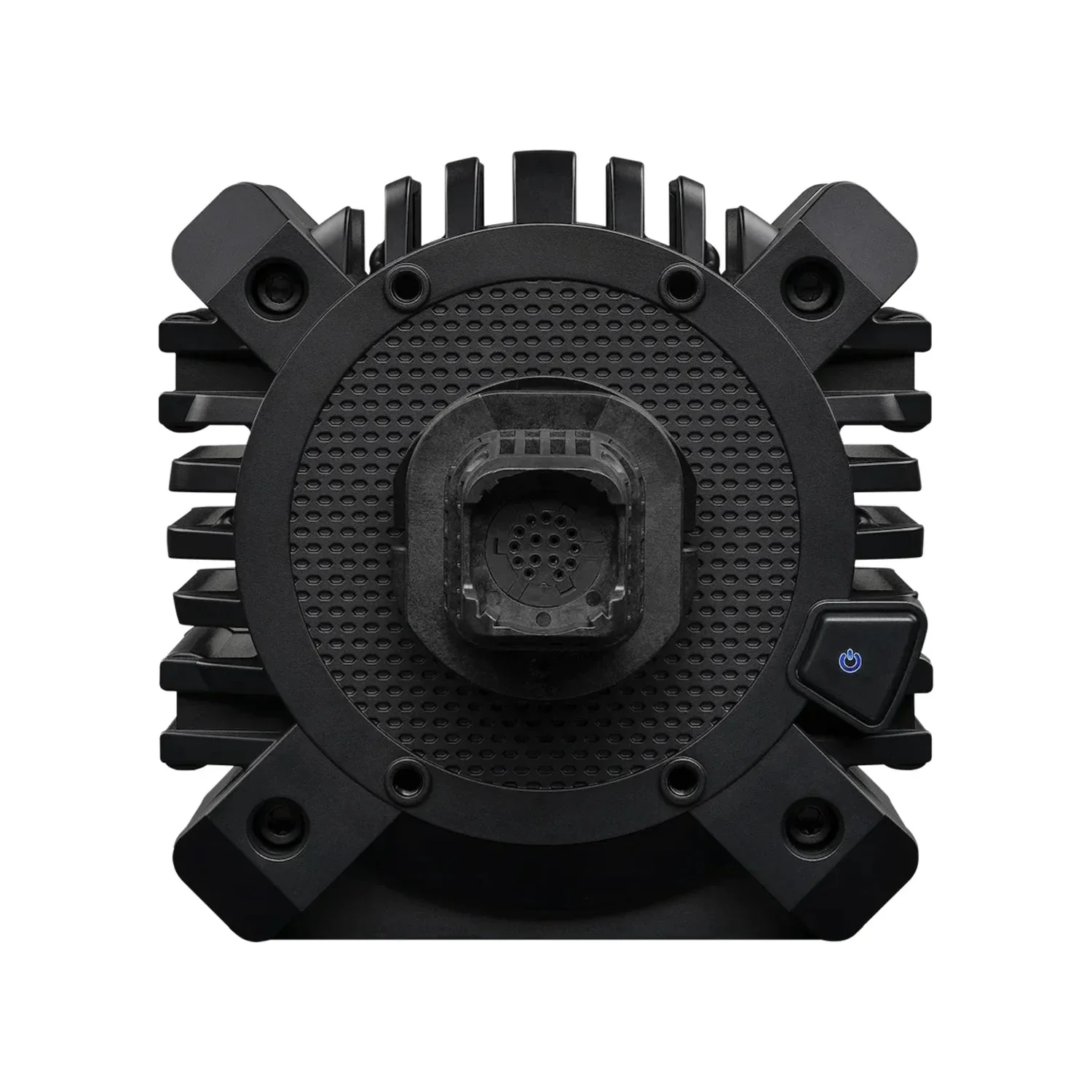

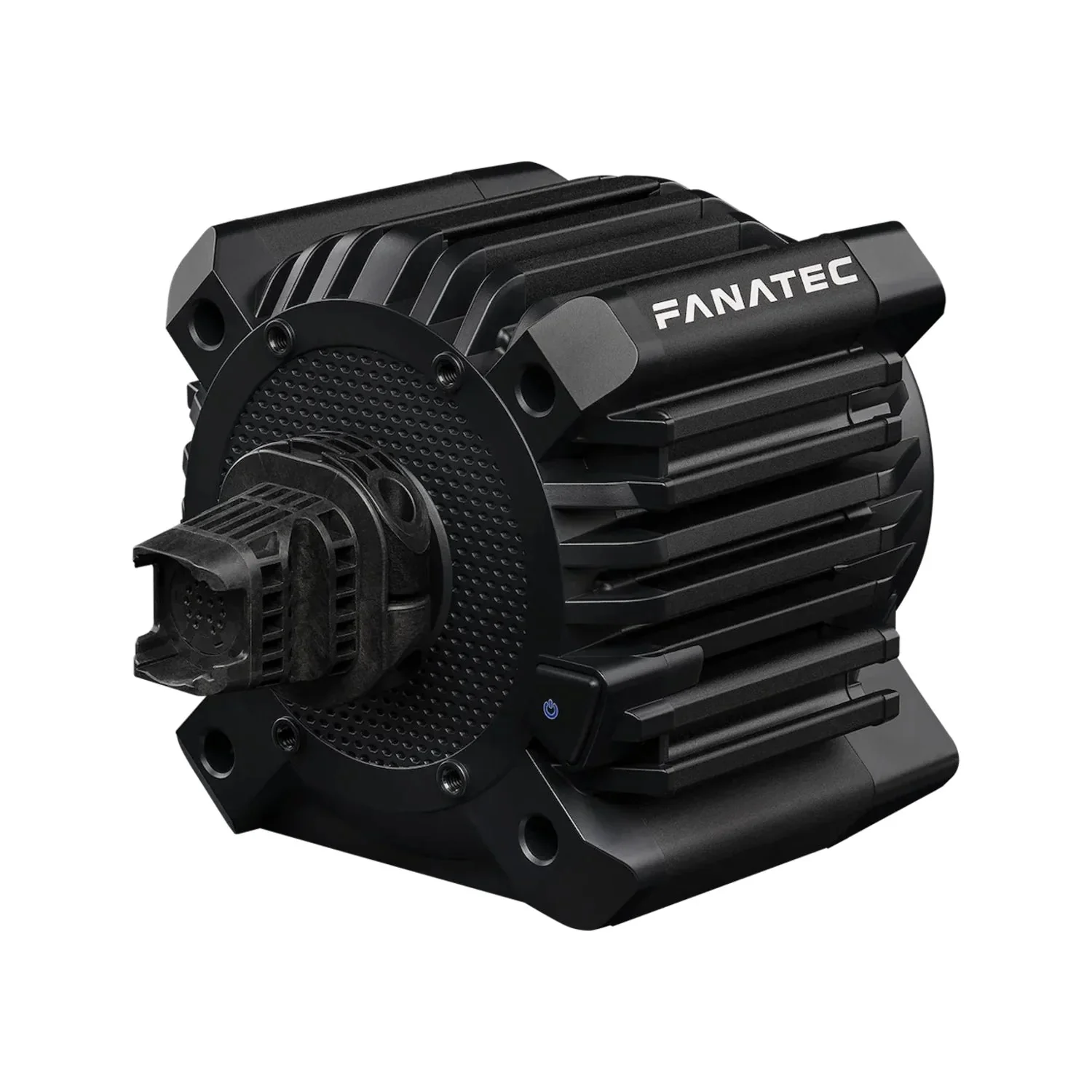

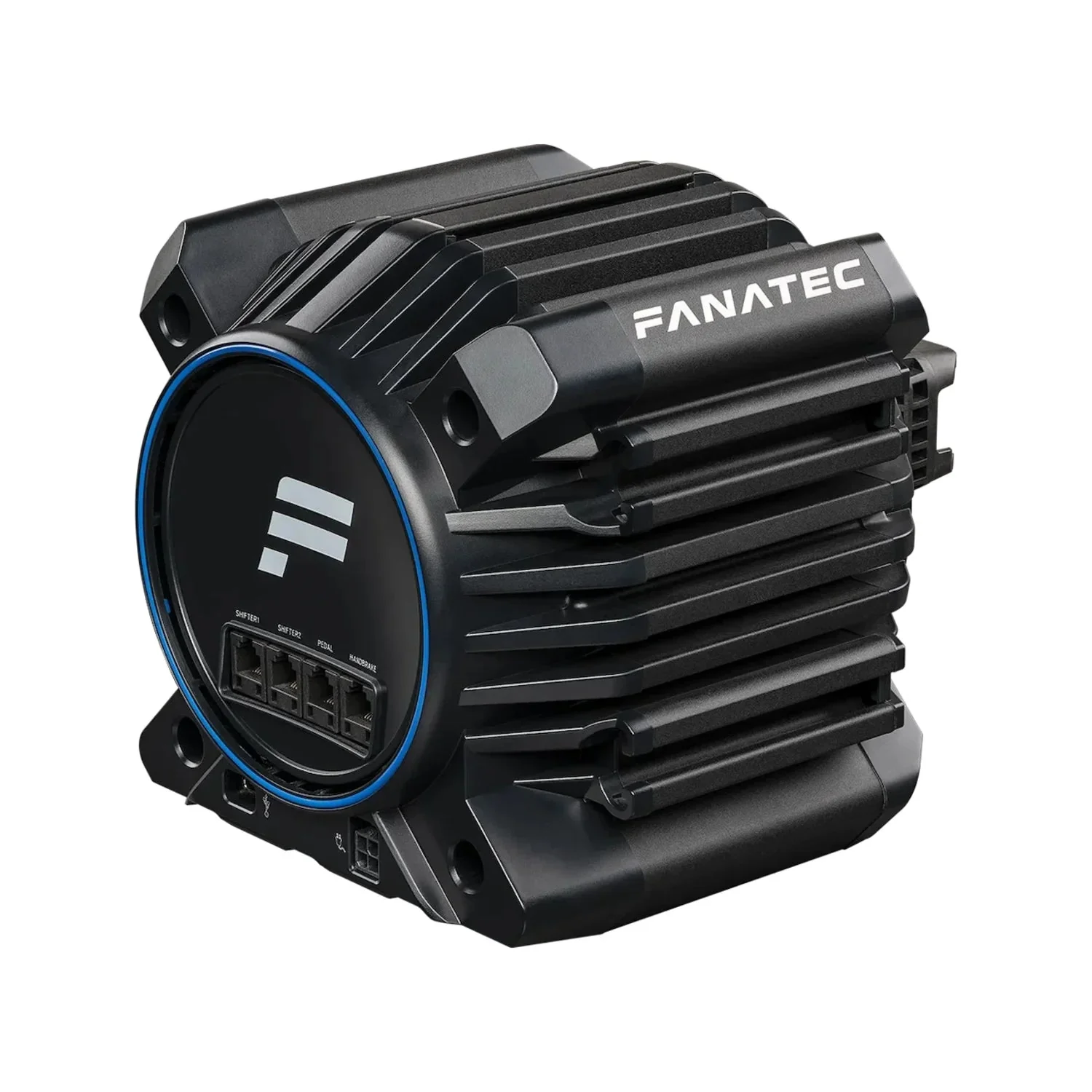

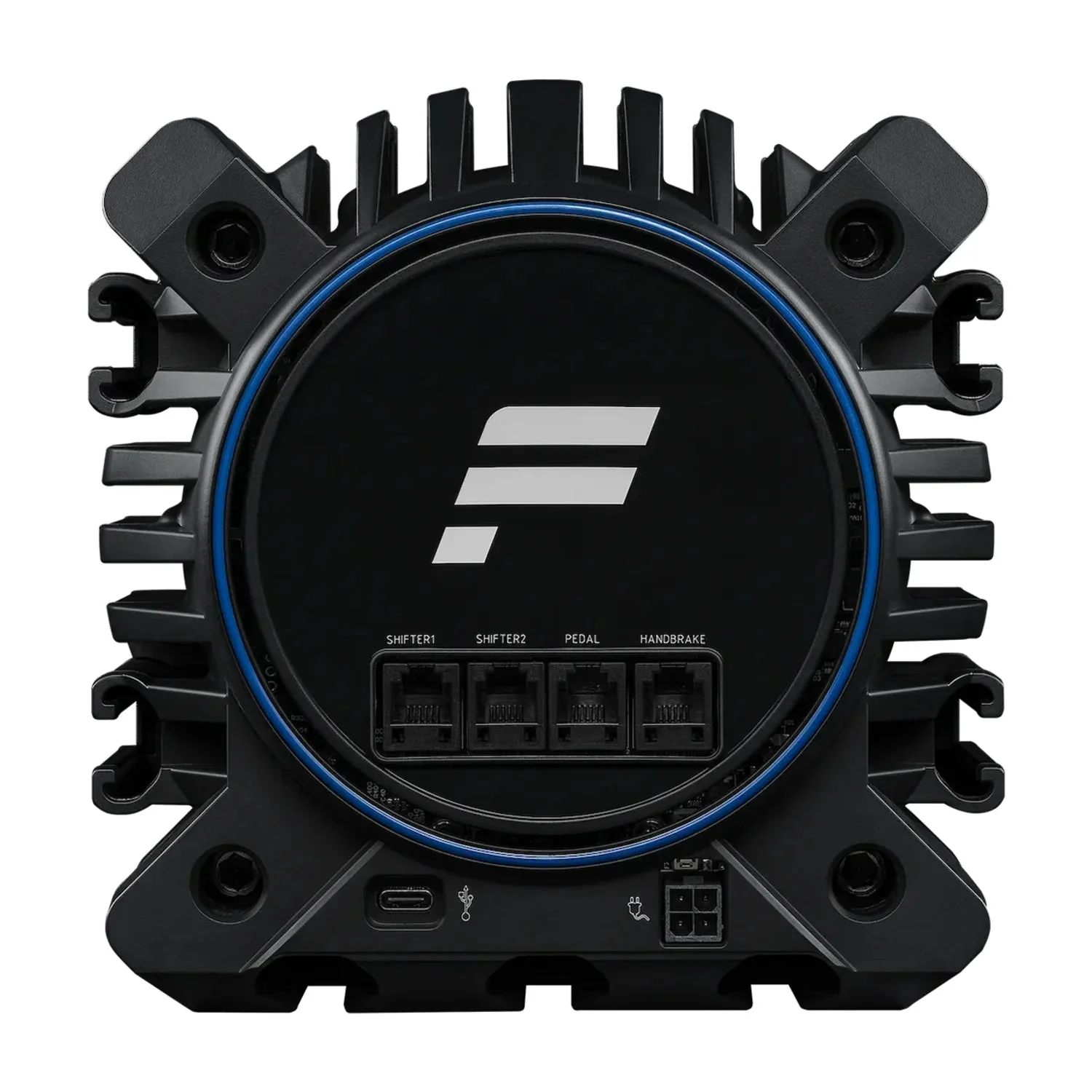

The Fanatec Gran Turismo DD Pro Wheel Base is a high-performance Direct Drive motor unit engineered specifically to deliver uncompromised force feedback fidelity. Operating at a peak torque of 8 Nm via the included Boost Kit 180, this unit utilizes a custom German-engineered servo motor with patented FluxBarrier technology to ensure smooth, highly detailed telemetry transmission. Housed within an extruded, CNC-machined aluminum casing that acts as a structural chassis and passive heatsink, it guarantees thermal stability and consistent torque output during demanding endurance sessions.

Key Features

• Direct Drive Architecture: Mounts the steering wheel directly to the motor shaft, eliminating belt or gear dilution for instantaneous, high-fidelity force feedback.
• 8 Nm Peak Torque: Includes the Boost Kit 180 power supply out of the box, maximizing the motor's dynamic range to communicate subtle track cues with remarkable clarity.
• Integrated QR2 System: Comes preinstalled with the motorsport-derived QR2 Lite Base-Side (Type-C), utilizing a tapered shape to ensure a robust, flex-free mechanical connection.

Technical Specifications

• Compatibility: PlayStation 5, PlayStation 4, and PC.
• Material: CNC-machined aluminum housing with a carbon fiber-enhanced composite steering axis.
• Torque: 8 Nm peak torque.
• Resolution: High-resolution, contactless Hall-position-sensor with up to 2520 degrees of adjustable rotation.
• Mounting: Side and bottom T-nut rail system for highly adjustable hard-mounting.

What's Included

• Gran Turismo DD Pro direct drive wheel base
• QR2 Lite Base-Side (Type-C) (preinstalled)
• Boost Kit 180 power supply
• 4x T-nuts for rail mount system
• PlayStation button caps
• USB cable (Type-C to Type-A)
• Quick Guide
