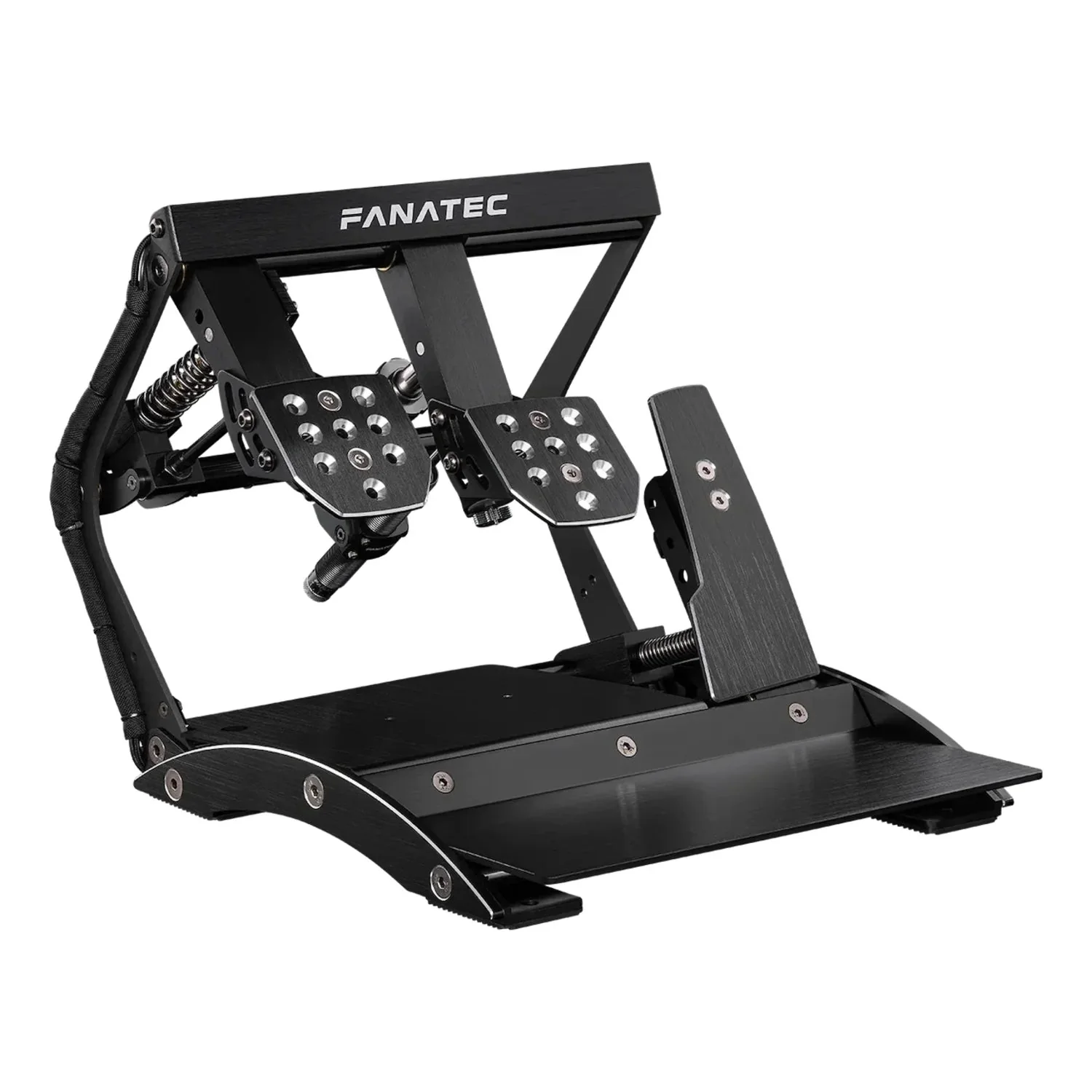

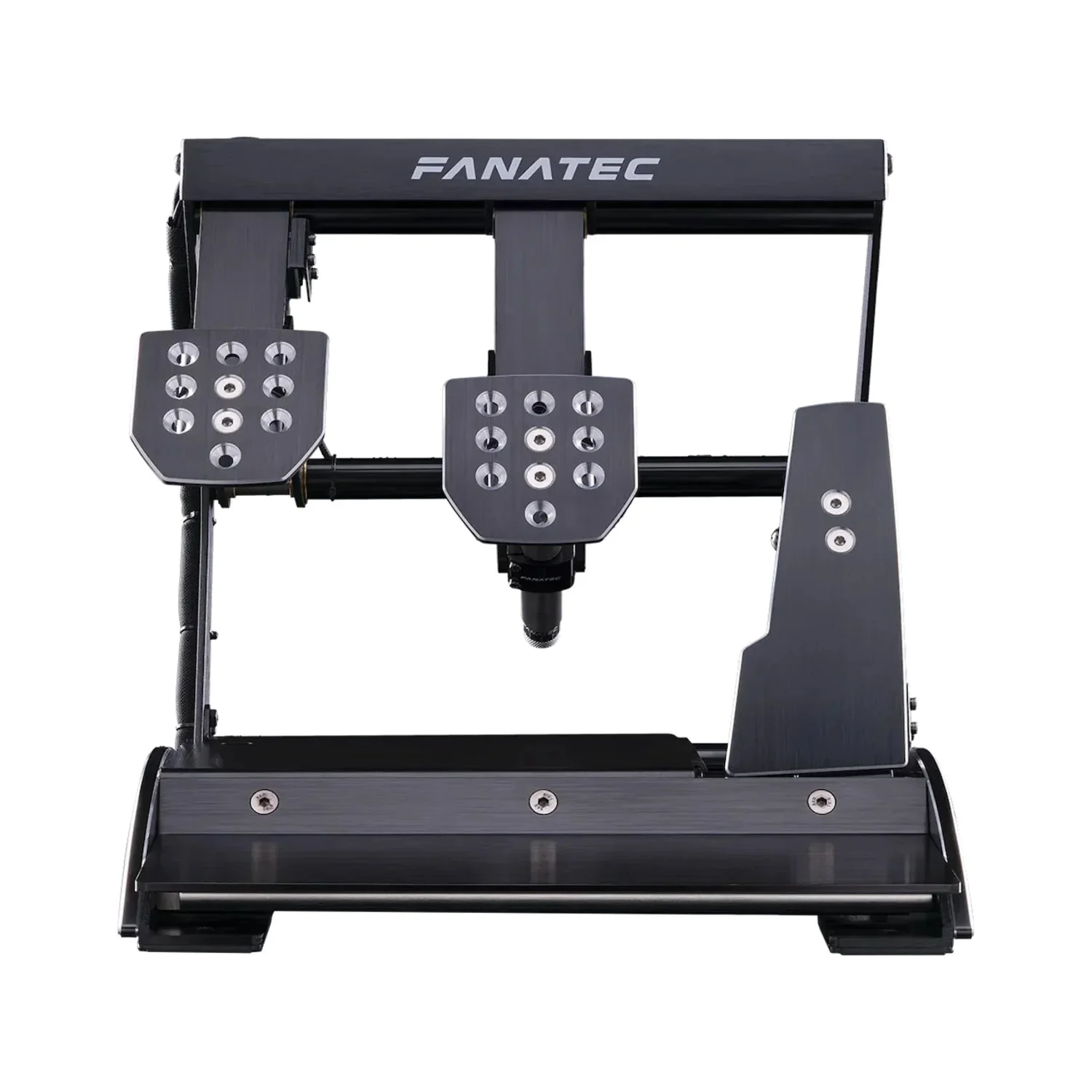

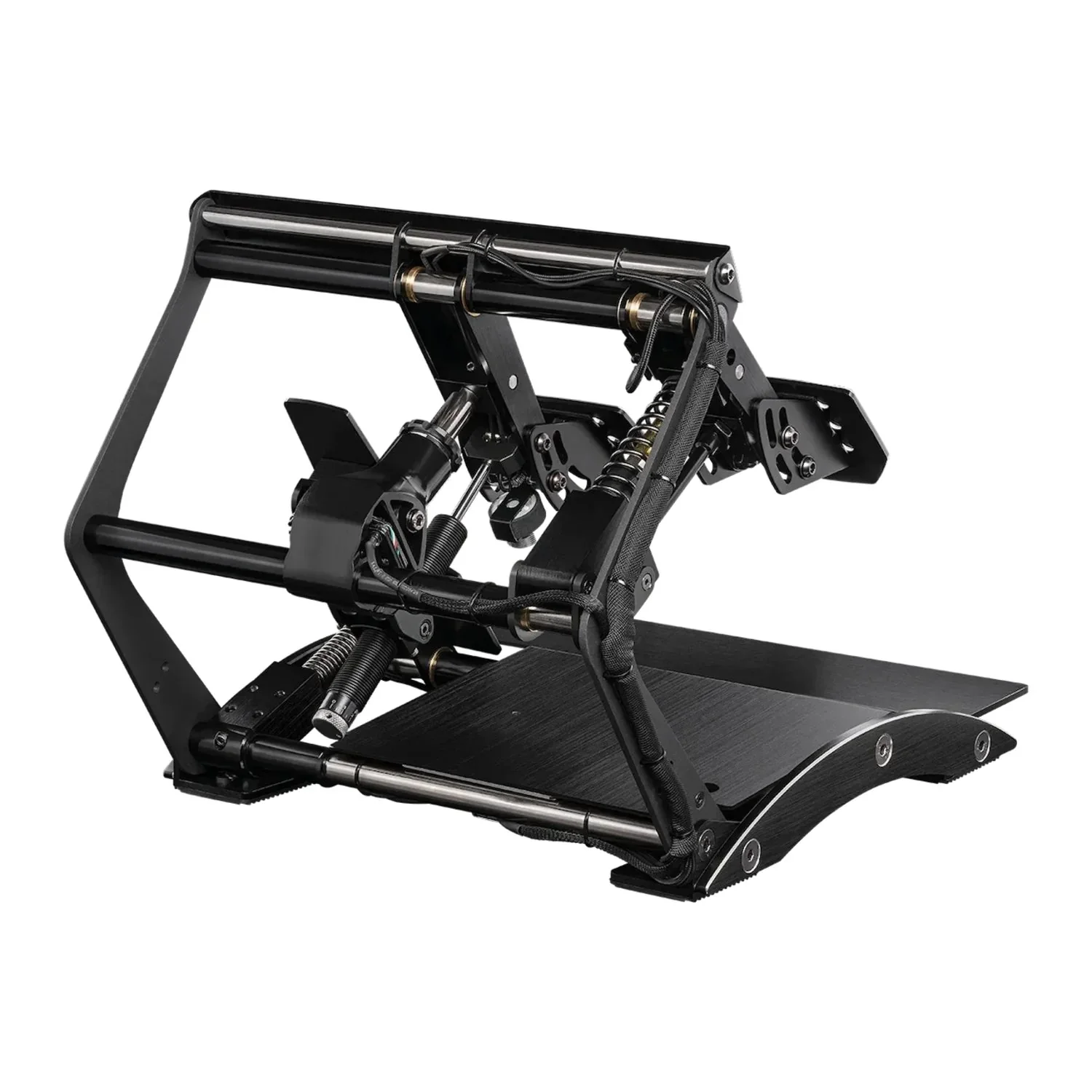

The Fanatec ClubSport Pedals V3 inverted sim racing pedal set delivers unparalleled realism by mirroring the suspended pivot points of a real-world GT or rally car. Constructed from robust CNC-machined aluminum, this premium pedal set features a custom 90 kg load cell brake and high-resolution contactless Hall sensors on the throttle and clutch. Equipped with a pre-installed hydraulic damper and dual vibration motors, it provides tactile telemetry feedback to maximize your consistency and competitive edge on the track.

Key Features

• Inverted Pivot Architecture: Suspends the clutch and brake pedals from a solid upper frame, replicating the ergonomic layout and extended pedal travel of authentic race cars.
• 90 kg Load Cell Brake & Damper: Combines a highly durable pressure-sensitive load cell with an out-of-the-box adjustable ClubSport Damper Kit for precise, muscle-memory-driven braking.
• Tactile Vibration Feedback: Integrated vibration motors on the throttle and brake pedals transmit vital telemetry data, such as rear-wheel spin, tire lockup, and ABS activation.

Technical Specifications

• Compatibility: PC (standalone via included USB cable or via Wheel Base) / PlayStation and Xbox (when connected through a supported Fanatec Wheel Base).
• Material: Full CNC-machined aluminum construction.
• Sensors: Custom 90 kg Load Cell (Brake) / Contactless magnetic Hall-effect sensors (Throttle and Clutch).
• Resolution: 12-bit (4096 values) on all axes.
• Mounting: Hard-mount ready with included stabilizer feet for robust sim rig integration.

What's Included

• ClubSport Pedals V3 inverted
• ClubSport Pedals V3i Damper Kit (pre-assembled on brake pedal)
• 3x Pedal Extensions (2x assembled, 1x accessory)
• 3x D-shape pedal plates incl. mounting screws
• 1x Strong spring throttle
• 2x Stabilizer feet incl. mounting screws
• 1x RJ12 connection cable (150cm)
• 1x USB connection cable (180cm)
• 1x Allen Key for damper
• 1x Lithium grease bottle
• 1x Quick Guide
